The universal vinyl siding trim is designed to provide a finished look on the outside wall of a home. Amerivent direct vent systems may also terminate with a snorkel cap where additional vertical rise is needed on the outside of the building. Wall thimble or adjoining pipe section.
M & G Duravent Directvent Pro 4 Id with 6 5 8 Od Vinyl
Here single wall can't be closer than 36 to combustables.
The snorkel caps are available in 14 and 36 rise above wall penetration.
Stack rise at a guess should be at least 9.5'. How do you put a thimble on a vinyl siding wall? Design recommendation the following design recommendations are general guideline to assist in the design and selection of venting components for 18 to fire rated wall.
Install flashing before starting to apply the siding.
Then install j channel around the thimble, again, taking. Sold by aserson and ships from amazon fulfillment. Consult your local building code for requirements in your geographic area. Cap (see appliance manufacturer installation instructions).
Plug in the stove's power cord, fill the stove's hopper with wood pellets and check then the stove's operation.
Works well for smaller square and sconce termination caps. Make a similar sized hole (centered) in this block, then use the block to mark how far back you need to trim the siding. To protect vinyl siding, select vinyl siding standoff. Also, placing your stove next to a rear wall helps to hide the vent pipe and make your home elegant.
This kit is only compatible with duravent direct vent pro pipes and components.
Install the optional vinyl siding shield to protect the wall above the termination. Replace the siding up to the block. Go 1 or 2 more it won't hurt. Insulated wall thimbles are designed so the thimble assembly will reduce the minimum 18 inch clearance to combustibles, to a minimum of at least 2 clearance.
I had obtained a wood stove over a year ago for my workshop.
A flat, level wall surface is necessary for proper installation of vinyl siding. The horizontal installation kit comes with the wall thimble, the thimble finish cover plate and the horizontal high wind chimney cap. Stack temps rating is to be 2800*. Directvent pro heat shielding standoff provides protection for your vinyl siding when you are installing a horizontal vent without fear of warping or melting the siding.
I finally got around to buying the installation kit and stove pipe and began the install.
Mount the block, tucking the siding into the j channel, then pass your pipe through. To protect vinyl siding, select vinyl siding standoff. This is the same scenario as where your siding meets and goes around a window or door. Make a 1 thick block large enough to contain the hole for the thimble, plus an inch or 2 more.
Attach the block to the wall using drip edge on the top.
Drill the big hole in through your wall wherever you want the pipe to pass. Select the appropriate horizontal termination cap (see appliance manufacturer installation instructions). Check appliance manufacturer’s instructions for wall thimble and firestop requirements. Eliminates visible trim on exterior or wall near cap.
Features an adjustable sleeve for an exact fit.

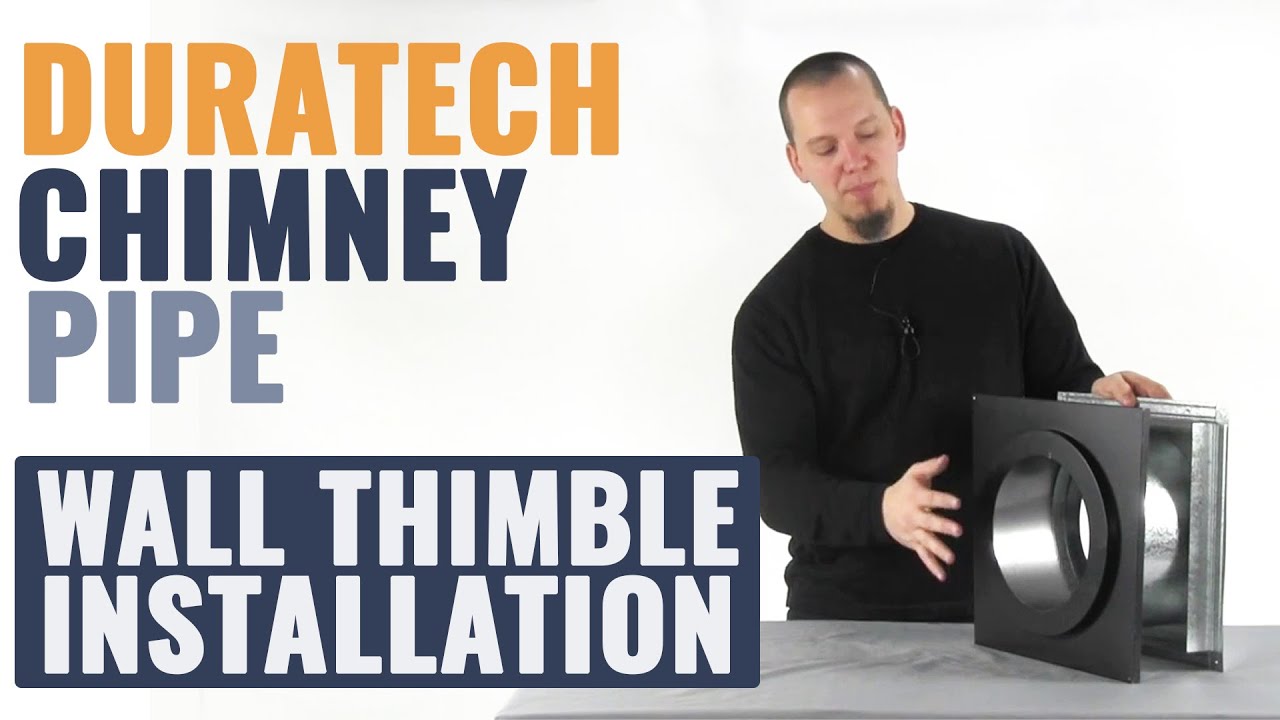

The vinyl siding trim is a universal part that can be used in combination with any icc chimney system wall radiation shield or wall thimble that passes through an outside wall horizontally. Strip the siding back beyond where the block will go. This video will guide you by finding the best location to go through your wall, how to cut the exterior wall and installation of the thimble. Check appliance manufacturer's instructions for wall thimble and firestop requirements.
You should pack insulation snugly against the outside box frame of the thimble, but never place insulation into the area within the thimbles's cylinder.
Cut the vinyl siding away from behind the wall thimble so the wall thimble can be attached to the backing material. A snorkel termination may be used if height restrictions prevent adequate rise above the appliance. Vinyl siding standoff use as a heat shield on structures with temperature This way you get a flat surface to mount.
The universal vinyl siding trim can be used with any type of siding.
Start the tw 24 from the cieling. Triple wall in or thru inclosed spaces. Caulk the thimble well and install window installation sticky tape around it, bottom first, then sides , then top to allow for proper shedding of water if it should get behind the siding. Aluminum inner wall, and.018 in.
