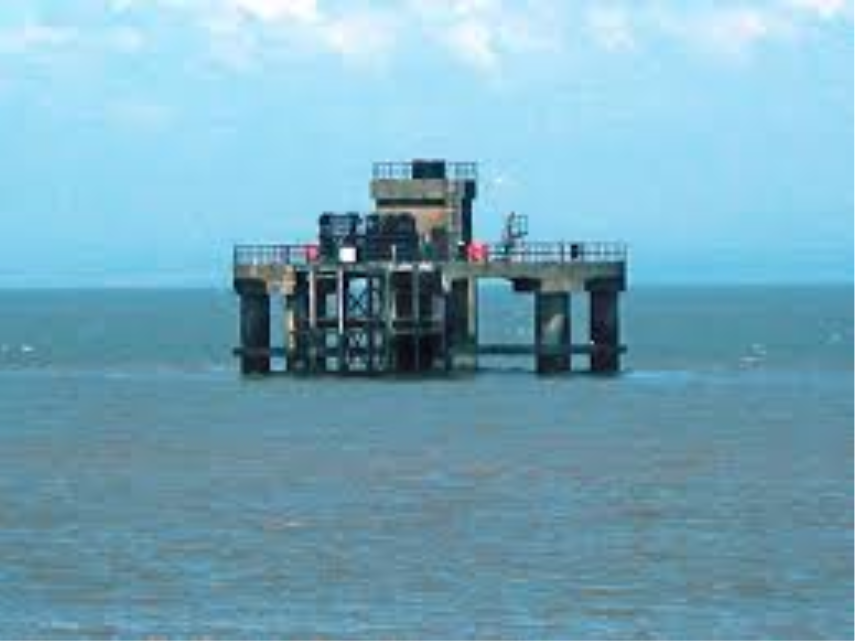

Read more categories article , construction , geotechnical engineering tags box caisson foundation , caisson foundation , caisson foundation construction metods , open caisson foundation , pneumatic caisson foundation , types of caisson. Caisson foundation is suitable when the present groundwater level is aggressive inflow. Caisson foundation is used when there is a high depth of the water level in the river and sea.
Caissons and air pressure techniques Volker Staal en
Caisson is a water tight structure made of wood, steel, r.c.c i.e.
Concrete, caisson, air, chamber, timber, foundations and feet.
It was used initially by french, british, and american engineers, including washington roebling, who completed his father’s brooklyn bridge.through the use of huge pneumatic caissons, into which compressed air was. A pneumatic caisson foundation is a structure having an excellent load bearing performance against horizontal and vertical loads, which derives from embedding highly rigid caisson bodies into the ground and making the caissons tightly constrained by the ground under the bottoms and by the side faces of the caissons. Pneumatic caissons are useful when wells cannot be used as a foundation. The pneumatic caissons are closed at the top and open at the bottom.
To install a caisson in place, it is brought down through soft mud until a suitable foundation material is encountered.
Method of construction of pneumatic caissons foundation: Caisson provides an access to the deep shaft or a tunnel. This type of caisson has several advantages, such as the ability to examine the soil bed and work in controlled conditions. It is a prefabricated hollow box or cylinder sunk into the ground to some desired depth and then filled with concrete thus forming a foundation.
February 17, 2022 by saad iqbal.
A caisson foundation also called as pier foundation is a watertight retaining structure used as a bridge pier, in the construction of a concrete dam, or for the repair of ships. Caisson is a watertight structure which it is generally made up of timber, steel, and reinforced cement concrete (r.c.c) and constructed in connection with the excavation for the foundation of piers, bridges, and dock structures etc. Box caissons are open at the top and closed at the bottom. Caissons may be classified into the following three categories:
When the surrounding earth cannot be dug satisfactorily, a pneumatic caisson is necessary.when there is a chance of a steady flow of water or difficult impediments during submersion, it also functions.pneumatic caissons have an open bottom and a closed top.
A pneumatic caisson also employs when there is a great influx of water or where difficult obstructions anticipate during the sinking. There is an easy and direct facility is available to reach the bottom of the caisson, hence any obstruction can easily be removed Caisson foundation which is also called pier foundation is a watertight retaining structure that is made up of timber, steel, and reinforced cement concrete (rcc), and constructed for the foundation of bridges, piers and dock. The caisson which is open at the bottom and close at the top and sunk by means of utilizing compressed air is known as pneumatic caisson.
Pneumatic caissons are especially useful where there are bowlders, pressed wood, masonry, etc.
While bedrock is preferred, a stable, hard mud is sometimes used when bedrock is too deep. This odd type of caisson has an open bottom but closed top. Quality control is good because work is done in conditions. Pneumatic caisson requires when the soil enclosed in an open caisson can not excavate satisfactorily through.
Its shaft during sinking operation.
Suspension bridge.modern suspension bridge was the pneumatic caisson, which permitted pier foundation at great depths. Following are the various advantages of pneumatic caissons: The pneumatic caissons are useful where it is not possible to adopt the open caisson. It also works when there is a possibility of a steady flow of water or difficult obstructions occurring during submergence.
Once placed, compressed air forces water out, creating a dry work environment within the water, which workers enter through airlocks.
The caisson is made of inner and outer layer of steel skins. Pneumatic caissons are open at the bottom & closed at the top. Thus the name is derived. Advantages of pneumatic caisson foundation:
Soil bearing capacity tests can be possible in situ.
A box caisson is a prefabricated concrete. The compressed air is used to remove the water from the working chamber at the bottom and the foundation work is thus carried out in dry conditions. Reinforced cement constructed in connection with excavation for the foundation of bridges, piers in rivers, dock structures etc. In the load compositions, when there are river forces included.
Pneumatic caisson is used in railway bridges, garbage pits, water supply, sewage facilities etc.
Pneumatic caisson is required when the soil surrounded cannot be excavated satisfactorily. Caisson provides an enclosure below water level for installing machinery, pumps etc. Two shafts are generally kept in the caisson. This has to be forced down to the bottom of the water by means of compressed air.
Caisson serves as an impervious core wall on earth dams when placed adjacent to each other.

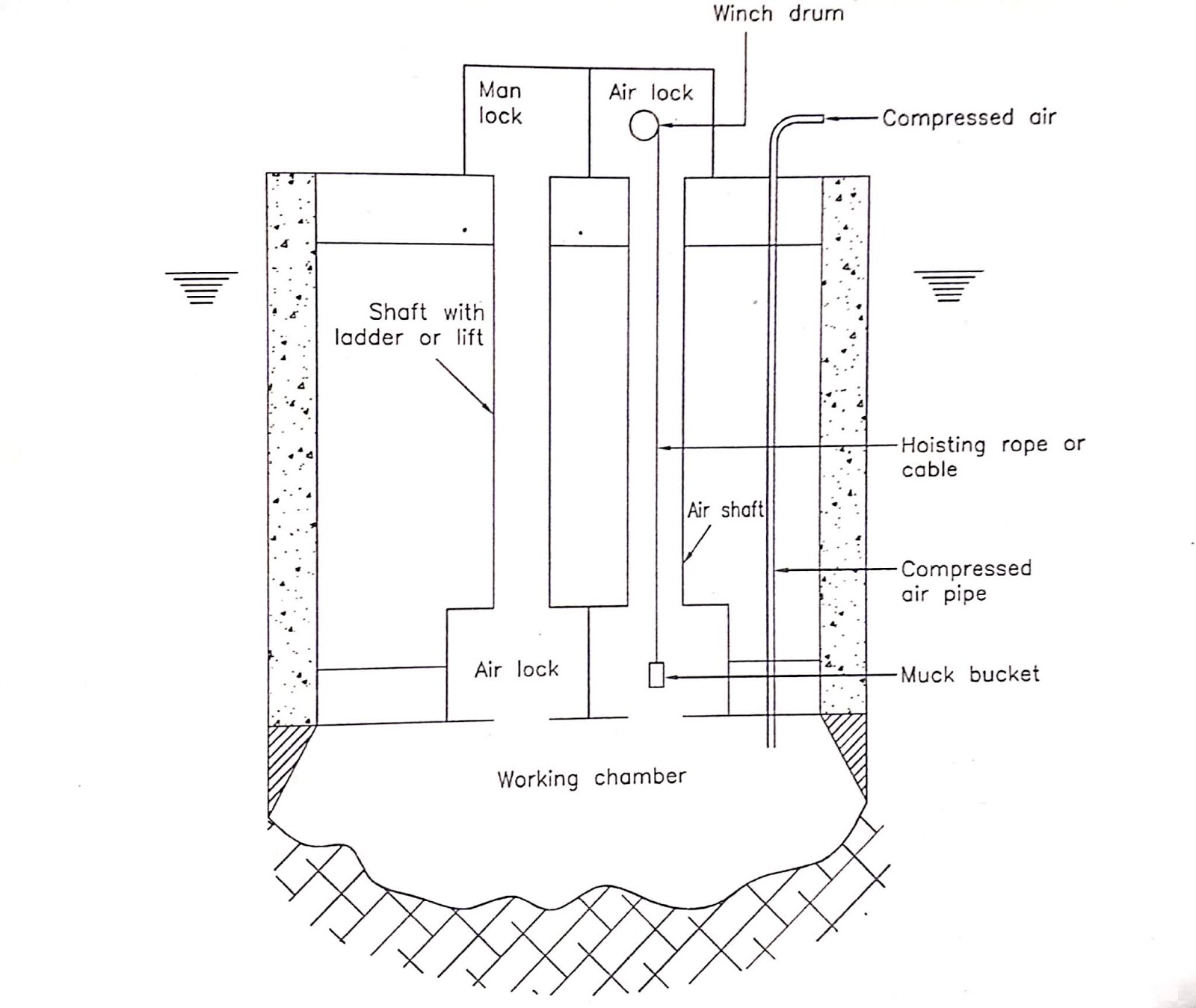

Pneumatic caisson consists essentially of the working chamber, the shaft, and an airlock. Pneumatic caissons are open at the bottom and closed at the top. The four main types of caisson are box caisson, open caisson, pneumatic caisson and monolithic caisson. Types of caisson there are three types of caisson as follows:
Caissons are preferred when the load is needed to carry at the end.
