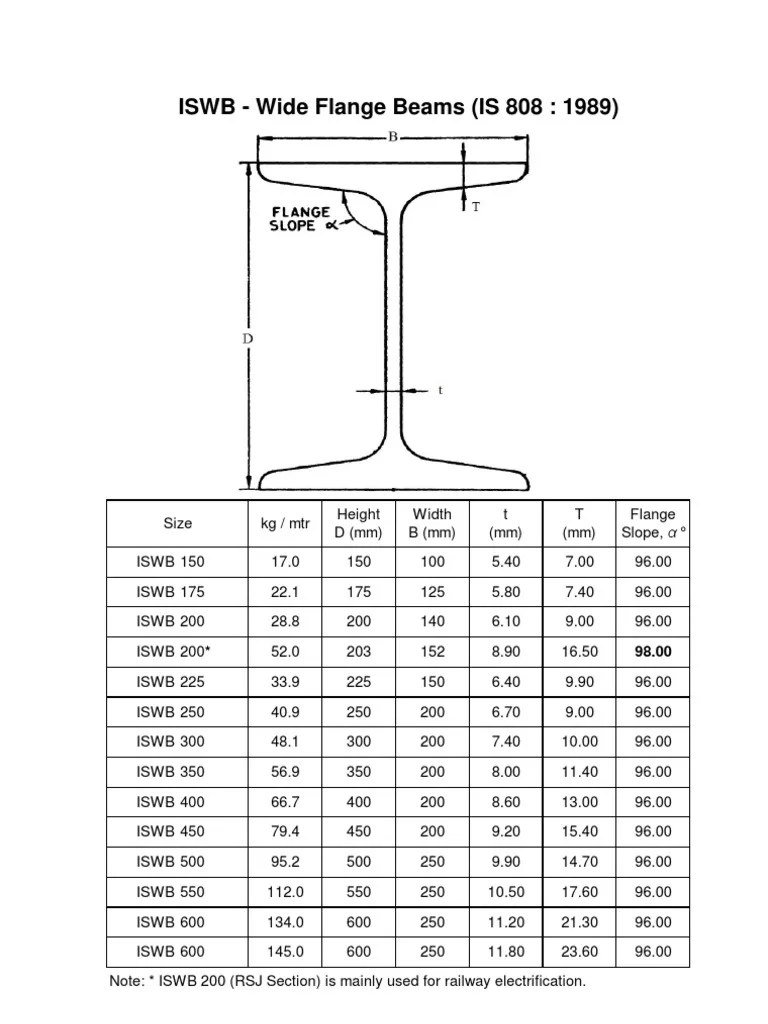

Profile dimensions, mm weight section area h b s t kg/m cm2 heb 100 100 100 6 10 20,4 26,0 heb 120 120 120 6,5 11 26,7 34,0 heb 140 140 140 7 12 33,7 43,0 heb 160 160 160 8 13 42,6 54,3 heb 180 180 180 8,5 14 51,2 65,3 heb 200 200 200 9 15 61,3 78,1 heb 220 220 220 9,5 16 71,5 91,0 heb 240 240 240 10 17 83,2 106 heb 260 260 260 10 17,5 93,0 118 heb 280 280. Choose an option 150mm x 14.0kg/m 150mm x 18.0kg/m 180mm x 16.1kg/m 180mm x 18.1kg/m 180mm x 22.2kg/m 200mm x 18.2kg/m 200mm x 22.3kg/m 200mm x 25.4kg/m. A) mb 200 — for a medium weight beam of depth 200 mm, b) sc 200 — for a column section of depth 200 mm, c) mc 200 — for medium weight channel of depth 200 mm, and d) mcp 200 — for a medium weight parallel flange channel of depth 200 mm.

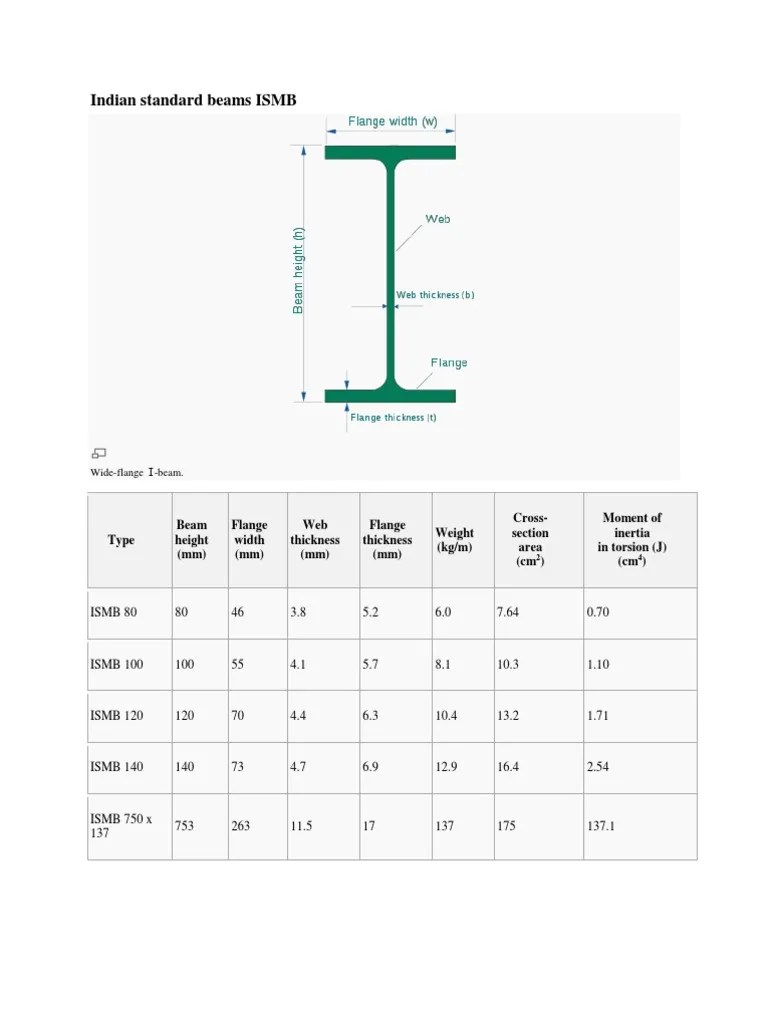

Indian Standard Beams ISMB Steel Structural Engineering
6.2 equal and unequal leg angles shall be designated by the abbreviated reference
Q235, ss400 of jis g3192 sizes weight sizes weight sizes weight 100*50*5*7 9.54 294*302*12*12 85 482*300*11*15 115 100*100*6*8 17.2 300*300*10*15 94.5 488*300*11*18 129 125*60*6*8 13.3 300*305*15*15 106 496*199*9*14 79.5 125*125*6.5*9 23.8 338*351*13*13 106 500*200*10*16 89.6
For 250 ub dimensions and more universal beams ub, check out the datasheet. Steel beams sizes (“i” sections ipe/inp) steel beams ipe/inp are a very commonly used type of steel profile. Civil engineering questions and answers. The article shows the i beam type sizes (ipe/inp web, flange in mm), weight in kilograms per meter, sectional area and mechanical properties (inertial moment, resistance modules, and inertial radius).
Available in a variety of sizes and weights.
The vertical middle section of the beam is known as the 'web' and the horizontal components are called 'flanges'. Universal beams (ub), made to as3679/300 and commonly referred to as “i” beams, are named after the ‘i’ shaped appearance of their cross section. It can be converted to mm4 by multiplying with 104 as. Wide flange beams are designated by the letter w followed by the nominal depth in inches and the weight in pounds per foot.
Thus w12 × 19 designates a wide flange beam with a depth of 12 inches and a nominal weight of 19 pounds per foot.
Wide flange beam dimensions chart for sizes, dimensions and section properties of steel wide flange beams. Find 200 x 44mm l/m floor joist h2s lvl at bunnings. Call us to get a quote or get a quote online here. With the steel beams size chart below, skyciv aims to have a free resource that can be accessed anytime via the browser.
The shape of the ub makes it ideal for beams or supporting weight laterally.
Universal beam 200mm x 18.2kg/m 18.2 0.764 198 99 7 4.5 184 universal beam 200mm x 22.3kg/m 22.3 0.91 202 133 7 5 188 universal beam 200mm x 25.4kg/m 25.4 0.912 203 133 7.8 5.8 188 universal beam 200mm x 29.8kg/m 29.8 0.922 207 134 9.6 6.3 188 universal beam 250mm x 25.7kg/m 25.7 0.961 248 124 8 5 232 The standard method for specifying the dimensions of a american wide flange beam is for example w 310 x 250 x 79, which is 310 mm deep, 250 mm wide and with a weight of 79 kg/m. Similarly, contact us for standard i beam sizes and prices. Sold from 0.9m to 12.0m in 300mm increments the floor joist i beam from smartframe offers lightweight, straight, stable engineered timber joists.
25.4 kg/m 133.0 mm 203.0 mm 7.8 mm 5.8 mm 8.9 mm 23.6 million mm**4 3.06 million mm**4:
Mahavir steel supplies a wide range of mild steel (ms) i beams. 200 x 100 x 5.7 mm at rs 66/kg in kolkata, west bengal. The i x moment of inertia of beam w 12 x 12 x 230 is 100510 cm4. Visit your local store for the widest range of products.
Get contact details and address | id:
Sizes range from 150 ub to 610 ub, standard lengths. The vertical “web” of a universal beam is significantly longer than. 400 mm seatwork beam dimensions 200 mm what are the adjusted design values for the following beam, given the following properties and service conditions? Universal beams universal beams b d r t t section size unit weight section depth flange width thickness corner radius section area m d b t t r a mm kg/m mm mm mm mm mm cm2 web flange (metric units) 300 x 150 300 x 200 300 x 300 350 x 175 350 x 250 350 x 350 25.00 32.00 36.70 41.40 46.20 69.00 48.30 55.80 56.80 65.40 77.30 84.50 87.00 93.00 94.
The deeper the ub the “stiffer” the beam.
